Murdoch Sewer Pump Station No. 22

STRUCTURAL RELINING

What was the project?

McRobert Contracting Services were contracted to complete the structural relining of a Type 180 pump station in the Peel region of Mandurah, Western Australia. 10 metres in depth, this pump station required us to reline three areas – two separate wet wells, and an inlet chamber.

Project details

Client: RCR Water

Location: Mandurah, WA

Duration: April – June 2017

Project Background

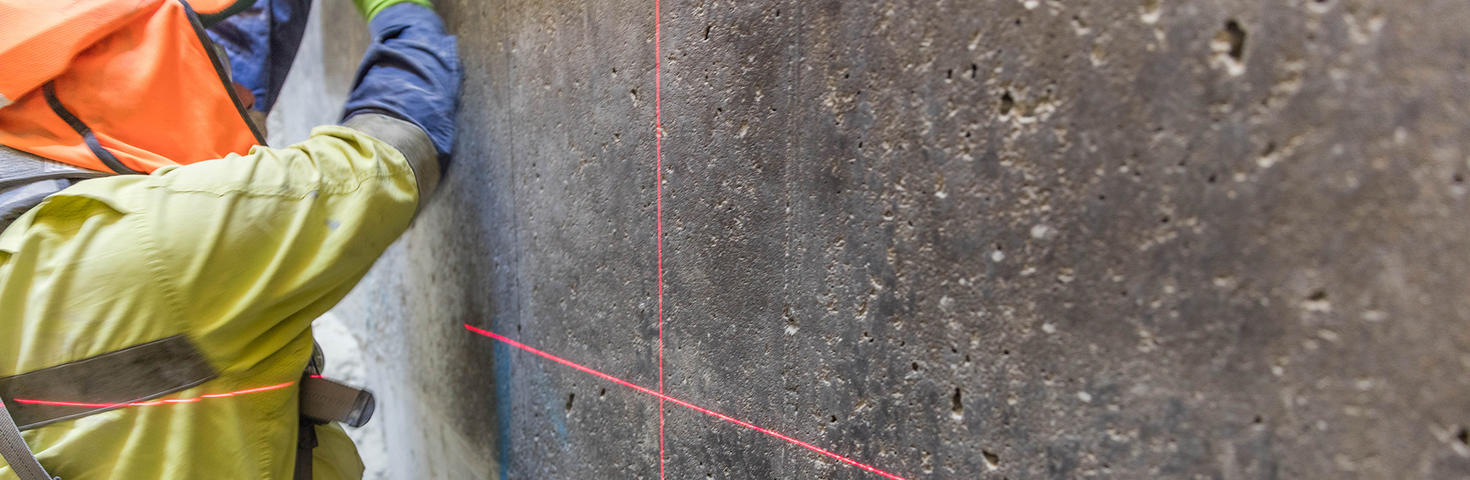

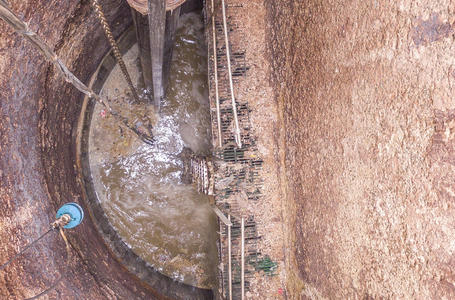

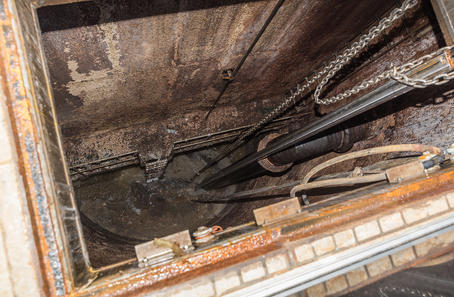

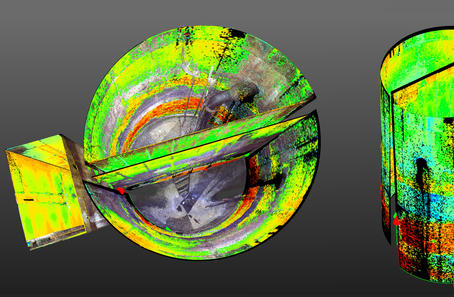

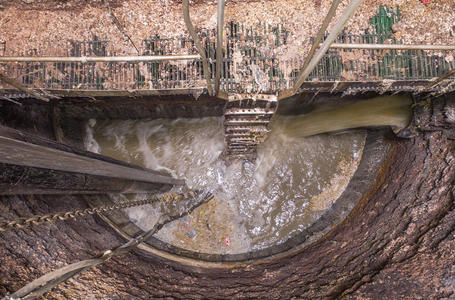

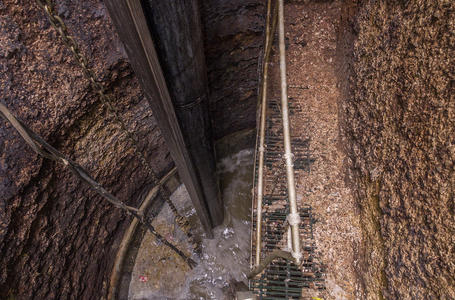

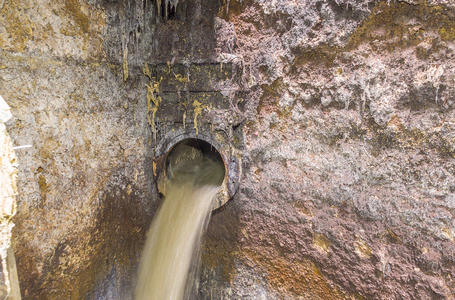

In 2016, MCS completed a 3D laser scan of the pump station. We determined that all areas had been severely affected by biogenic sulphide corrosion. More than 100% of the concrete cover had deteriorated from the lower sections of the walls of both the wells and the inlet chamber.

What did we do?

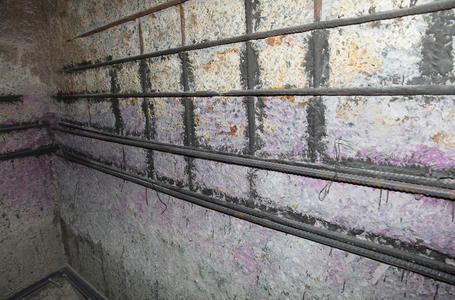

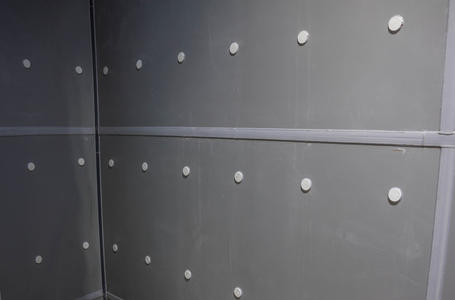

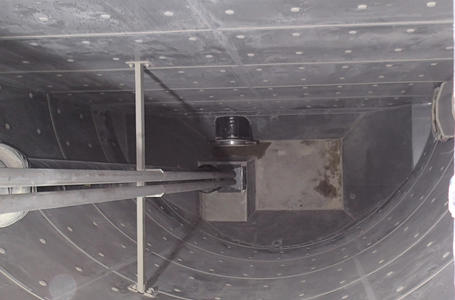

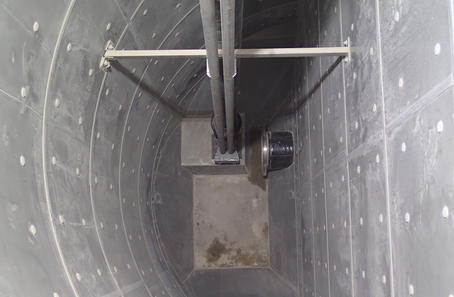

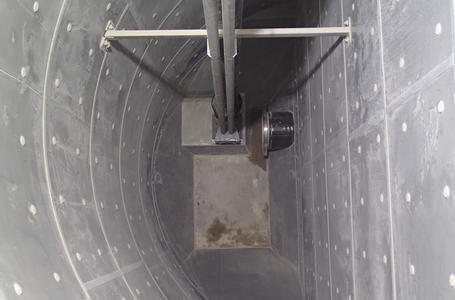

Due to the amount of deterioration, MCS was contracted to perform concrete and reinforcement repairs to the walls of the pump station, prior to the installing rigid PVC as per our whaler system patent. See here for how we do this.

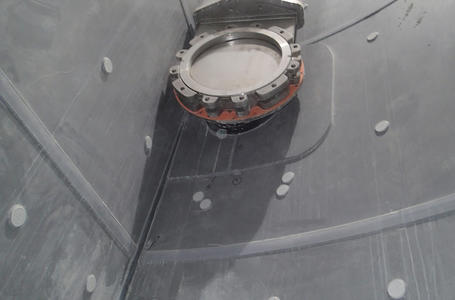

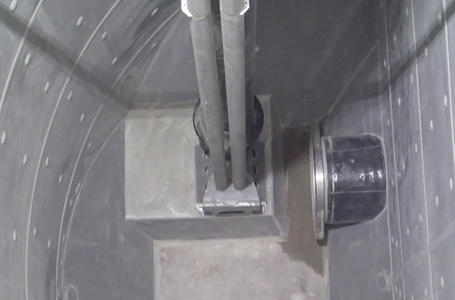

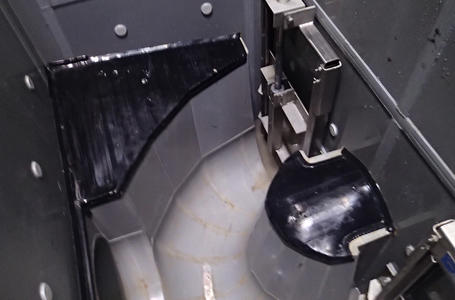

We also removed the original benching from the wells and the inlet chamber, before fabricating and installing new benches made from both rigid and flexible PVC. Two penstocks were installed in the inlet chamber, and new gatic lids were fitted in the slab for the wet wells.

Check out our gallery of project images

Swipe left or right to view the gallery.

Before & After Brochure

SPS Refurbishments

Company Profile

See what else McRobert Contracting Services can do for you.

Murdoch Sewer Pump Station Refurbishment
50 Year Guarantee

McRobert Contracting Services
50 year guarantee for the plastic lining of utilities access chambers and sewer pump stations.

Provided no physical damage or prolonged exposure to UV occurs in the future, PVC linings should last well in excess of 100 years.
